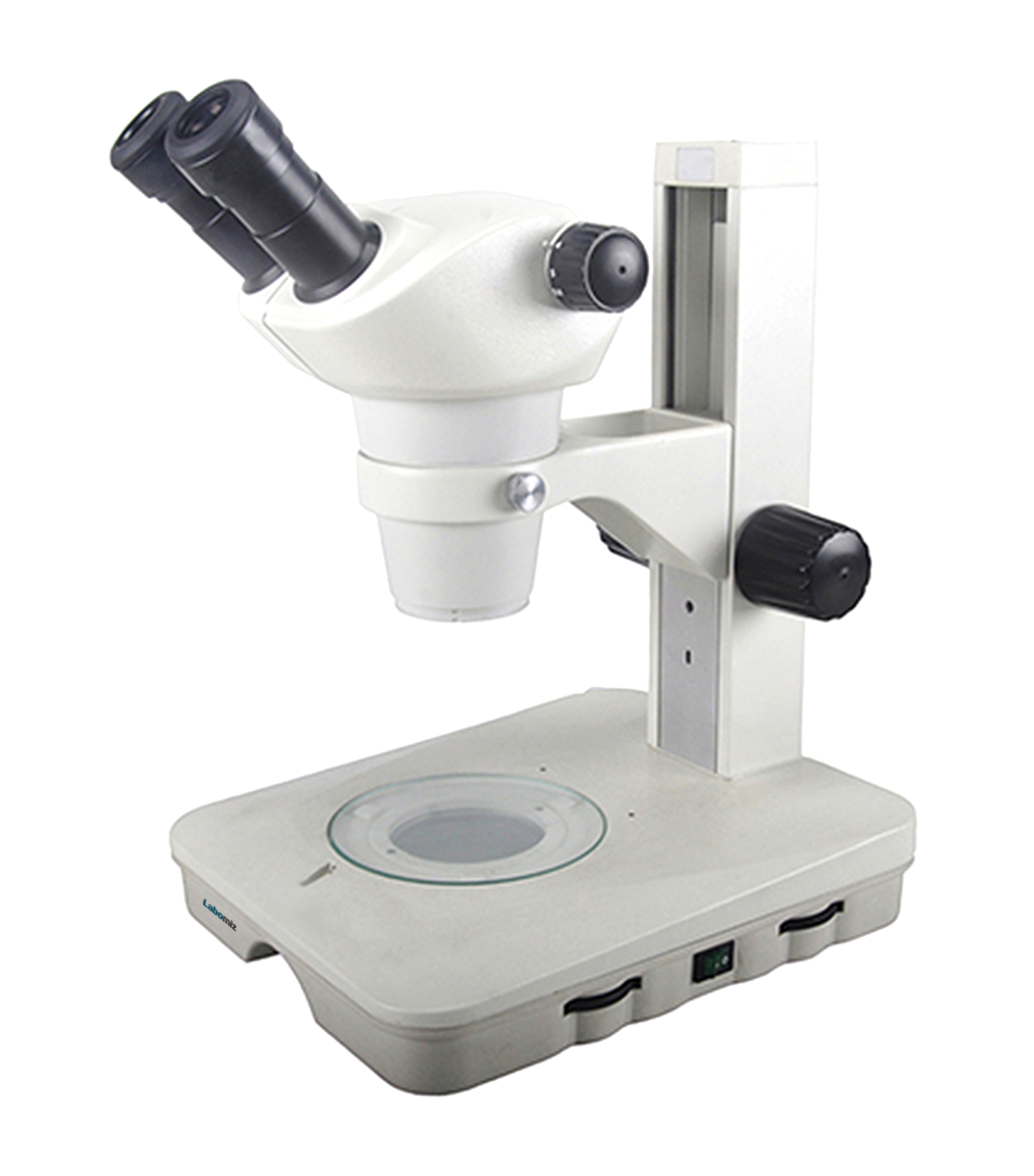

Zoom stereo microscope MZSM-5B is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provides very clear upright, un-reversed 3-D image throughout the zoom range. Coarse focus knob with tension adjustment aids in mobility of the objective lenses. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives. LED light providing uniform illumination with long life span of 60,000 hours.
Request Quote
Viewing head
Binocular
Zoom ratio
8.3 : 1
Eyepiece (Extra wide field eyepiece )
WF10X/ Φ23 mm
Inclination
45°
Inter-pupillary distance
55 mm ⁓ 75 mm
Zoom objective
0.6X ⁓ 5X
Working distance
115 mm
Focusing range
105 mm
Glass insert plate diameter
125 mm
White and black round plate diameter
125 mm
Incident illumination
100 V ⁓ 240 V
Transmitted illumination
100 V ⁓ 240 V
Dimensions
370 × 310 × 520 mm
Weight
7.5 kg
Large viewing field and long working distance
Sharp, striking contrast image ( high quality optical component )
Ensures flat image at large depth field
Ergonomic design increases productivity
Incident, transmitted LED Illumination ( examine transparent sample )
Video and photo adaptor ( optional )
Used in academic, medical and industrial field. Used for Circuit board repair and inspection, SMT work, electronics electronic inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.
