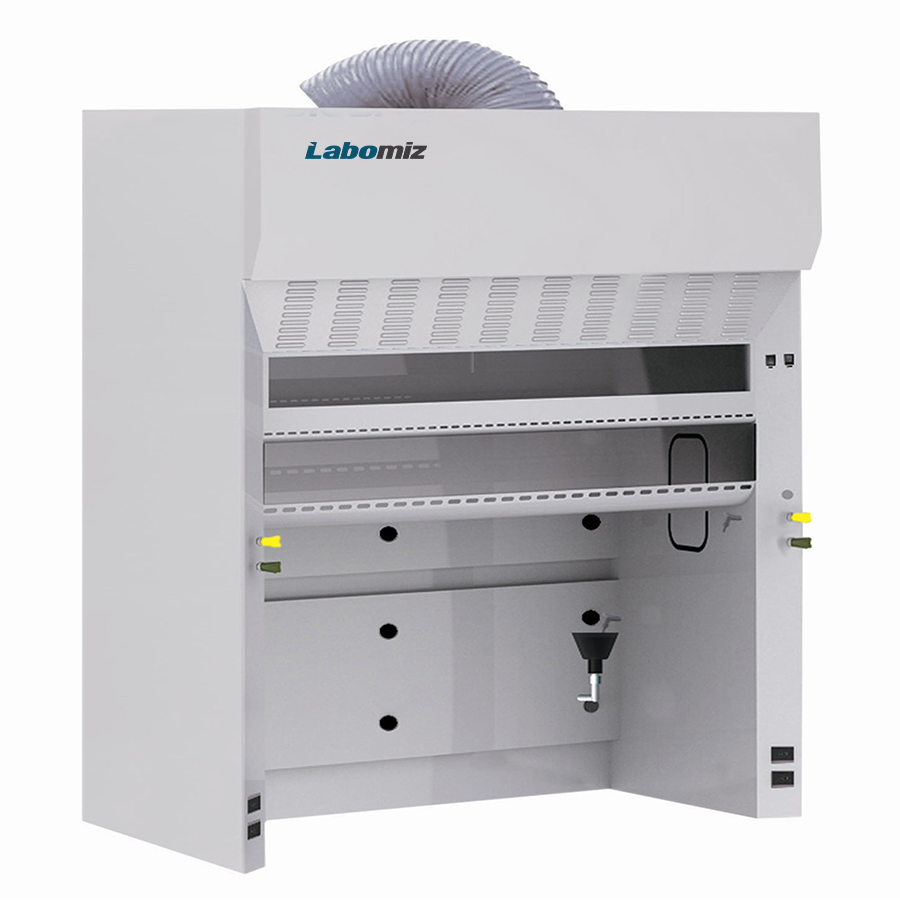

Walk-in fume hood MWFH-1A is a floor mounted, dual layered unit made of exterior cold-rolled steel and interior melamine. External blower adjusts stream speed. Manual operating front glass window made of toughened glass. Standard PVC exhaust duct removes toxic fumes and provide excellent chemical resistance.
Request Quote
Internal size
980 × 600 × 1650 mm
External size
1200 × 800 × 2200 mm
Maximum opening
1300 mm
Exhaust airflow volume
1150 m3/h
Inflow air velocity
0.3 m/sec ⁓ 0.8 m/sec
Front window
Toughened glass
LED lamp
12 W × 2
Illumination
≥ 800 Lux
Vibration
≤ 4 μm ( XYZ direct )
Socket total load
≤ 500 W
Noise
62 dB
Power consumption
400 W
Power supply ( AC )
220 V ±10 %, 50/60 Hz
110 V ±10 %, 60 Hz
Exhaust blower dimensions
970 × 810 × 720 mm
Main body dimensions
1400 × 1050 × 2430 mm
Adjustable air speed
Four water proof socket
Manual front glass window ( height adjustable )
Remote control water and gas valve
Anti-corrosive water tap
Phenolic resin coated work table ( Chemical resistance )
Used to accommodate large apparatus in chemical laboratories. Used for testing and research purpose.
