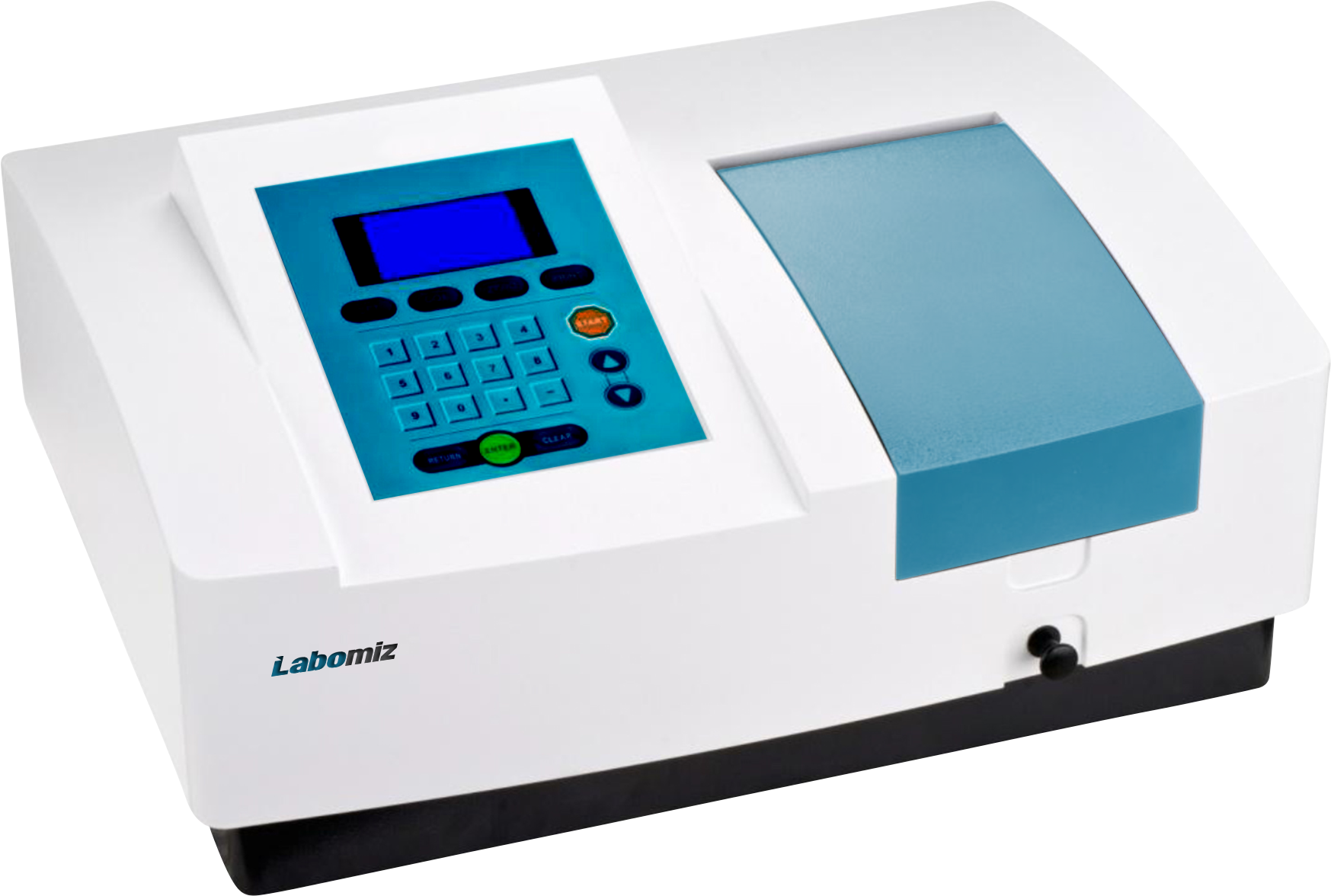

UV-Visible Spectrophotometer MUVS-2A is a microprocessor based light intensity measuring unit with wavelength range 190 nm ~ 1100 nm. It is equipped with fault diagnosis function with automatic wavelength setting ensures high precision and stability. Integrated with RS-232 serial port enables output to be connected to printer or computer.
Request Quote
Optical system
Achromatic Czerny-Turner (1200 L/mm grating)
Wavelength range
190 nm ~ 1100 nm
Spectral bandwidth
4 nm
Wavelength accuracy
± 2 nm
Wavelength repeatability
0.5 nm
Wavelength setting
Auto
Stray light
0.3 % T at (220 nm , 360 nm)
Display
128 x 64 LCD
Detector
Silicon photodiode
Light source
Deuterium lamp; Tungsten lamp
Power
AC 110 V,50 HzAC 220 V,60 Hz
Dimensions
520 x 450 x 300 mm
Gross weight
11 kg
Microcomputer system for storage of standard data and curve
Diffraction grating 1200 L/mm ensures precise spectral results
USB,RS-232 serial port for output connection
LCD display measuring value and curve
Automatic wavelength calibration
Quantitative measurement: photometric analysis, quantitative analysis, kinetic testing, multi wavelength test, DNA/protein testing, spectral scanning.
Used in biochemistry, biochemical, pharmaceutical, environmental protections, food, chemical, universities and quality control for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.
