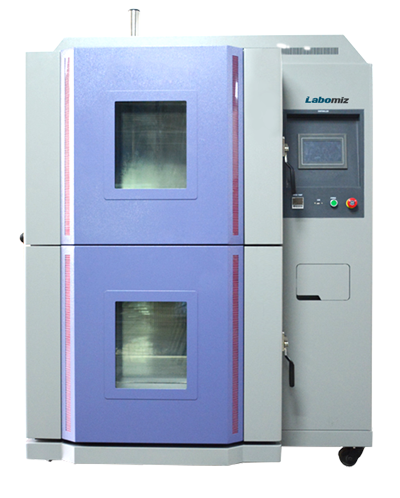

Two-zone thermal shock test chamber MTWZC-1C is equipped with a hot and a cold dual zone with individual chamber control. It provides a thermal shock range from (-55 ℃ to 200 ℃). Each zone is pre-heated and pre-cooled enabling after transfer high recovery rate. Equipped with horizontal airflow design ensuring uniform results. The sample is alternated between the two zones for rapid product temperature change to test its environmental adaptability.
Request Quote
Chamber capacity
226 L
Thermal shock range
( -55 ℃ to 200 ℃ )
High temperature chamber range
60 °C to 200 °C
Low temperature chamber range
( - 55 °C to -10 °C )
Specimen weight
5 kg
Conversion time
10 sec
Recovery time
3 mins
Noise level
≤ 70 dB
Interior dimensions ( W x H x D )
510 x 510 x 510 mm
Exterior dimensions ( W x H x D )
610 x 770 x 610 mm
Weight
904 kg
Individually controlled hot and cold zones
Rapid recovery rate post transfer
Electrical panel with integrated circuit
Electronic expansion valve system
Mechanical refrigeration
Protection and alarm devices for safety
Used in research, pharmaceutical and chemical industries for stress screening to assess products for their environmental adaptability and to test for product flaws
