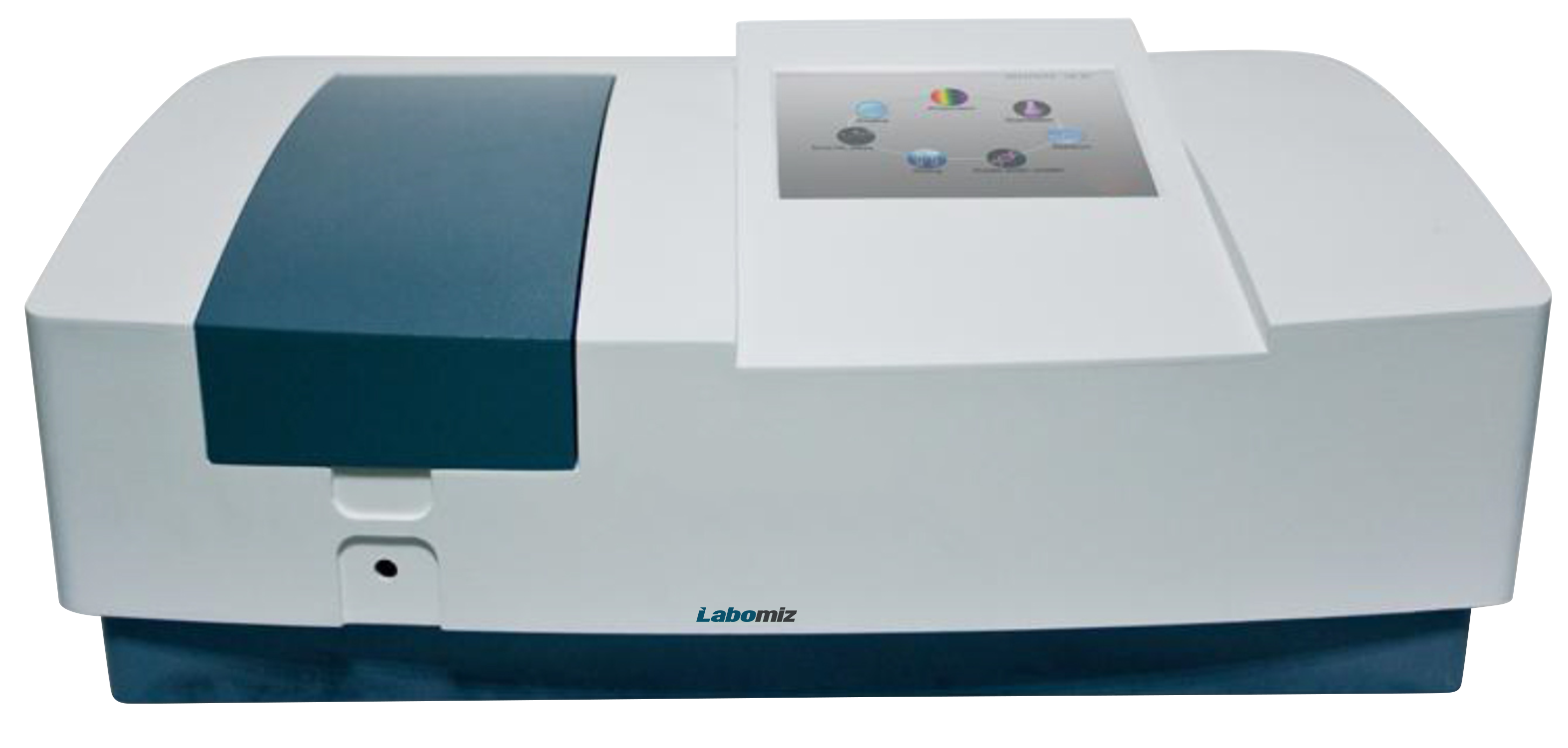

Touch screen UV-Visible Spectrophotometer MTUVS-1D is a double beam light intensity measuring unit with wavelength range 190 nm ~ 1100 nm. It is equipped with color LCD touch screen control panel with tungsten and deuterium lamp as a light source ensuring stable output. Incorporated with high performance 64-bit A/D converter for optical data acquisition and sample processing. Individual design of optical and electrical system prevents cross effect of sample processing.
Request Quote
Optical system
Double beam
Wavelength range
190 nm ~ 1100 nm
Spectral bandwidth
1 nm
Wavelength accuracy
± 0.3 mm
Wavelength repeatability
0.1 nm
Display
9 inches VGA
Detector
Silicon photodiode
Scan speed
HIGH, MEDIUM, LOW
Stray light
0.05 % T at 220 nm,360 nm
Light source
Tungsten and Deuterium
Power
AC 110 V,50 HzAC 220 V,60 Hz
Dimensions ( L x W x H )
595 x 430 x 210 mm
Weight
28 kg
Double beam optical system
Detector - Silicon photodiode
Large data storage capacity
32-bit microcontroller optimizes measurement speed
Output - USB , SD and parallel port for printer
Mirror surface coating with SiO2 film prevents optical parts corrosion
Used in biochemistry, clinical and research labs, pharmaceutical, agriculture, environmental protection for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.
