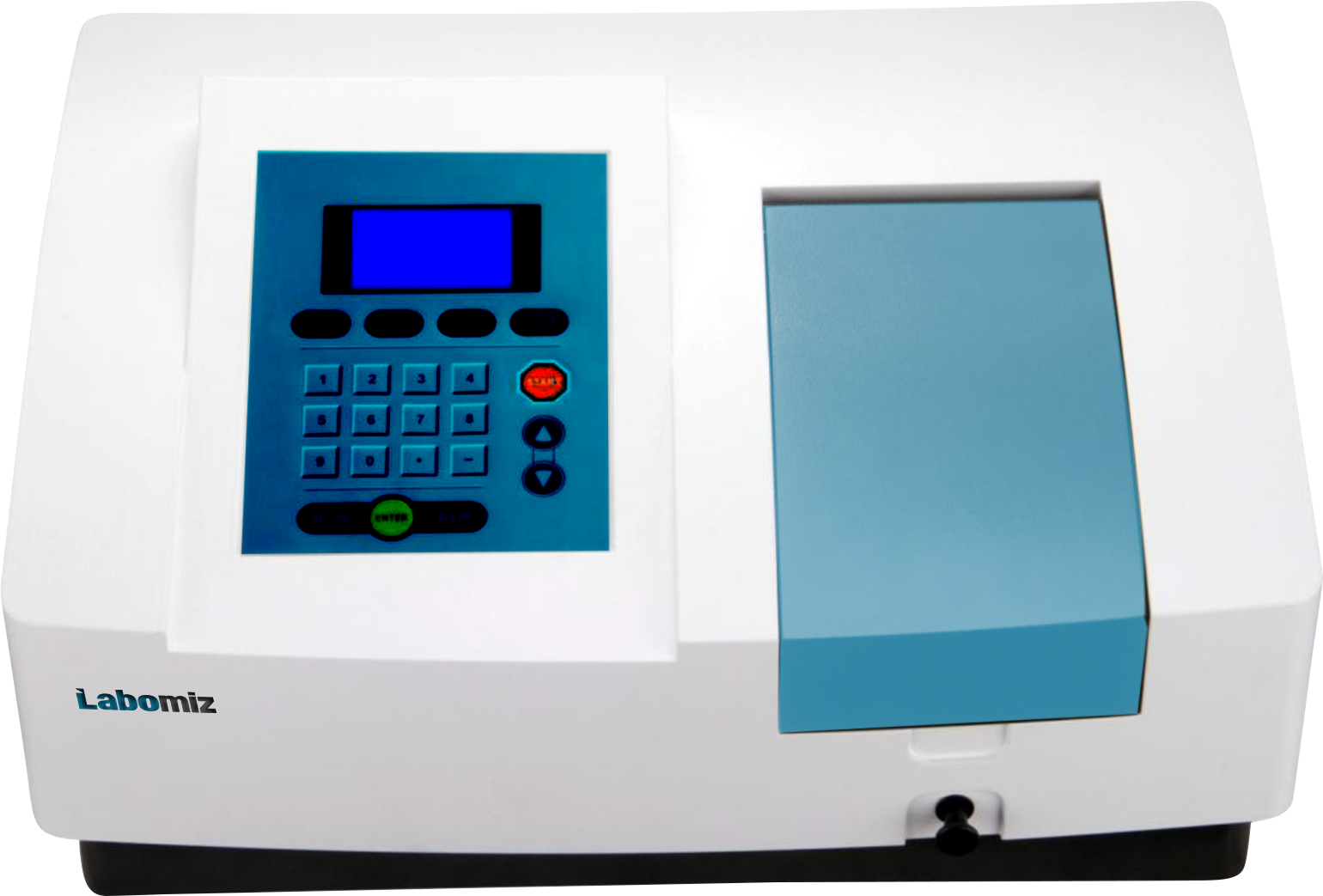

Scanning Visible Spectrophotometer MSVS-1B is a light intensity measuring unit with wavelength range 320 nm ~ 1100 nm ensuring precise and stable output. It is equipped with 24-bit high precision A/D converter with ARM system for high sample processing speed. High performance diffraction grating (1200 L/mm) for precise spectral results. Integrated with USB interface enables transfer and storage of output data.
Request Quote
Optical system
Achromatic Czerny-Turner (1200 L/mm grating)
Wavelength range
320 nm ~ 1100 nm
Spectral bandwidth
2 nm
Wavelength accuracy
± 0.5 nm
Wavelength repeatability
0.2 nm
Wavelength setting
Auto
Display
4-bit 320 x 240
large screen LCD
Detector
Silicon photodiode
Stray light
0.2 % T at 360 nm
Stability
± 0.002 A/h at 500 nm
Light source
Tungsten and Deuterium
Measurement modes
T,A,C
Power
AC 110 V,50 HzAC 220 V,60 Hz
Weight
8 kg
LCD digital displays curve and data
Large sample chamber - upto 100 mm cuvette
Light source-Tungsten and Deuterium lamp
Center light spot for higher metering precision
Function-photometric and quantitative measurement, spectral scanning, dynamic and DNA/protein testing, multi-wavelength testing, data printing, etc.
Output - USB interface
Used in biochemistry, clinical and research labs, petrochemical, agriculture, environmental protection for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.
