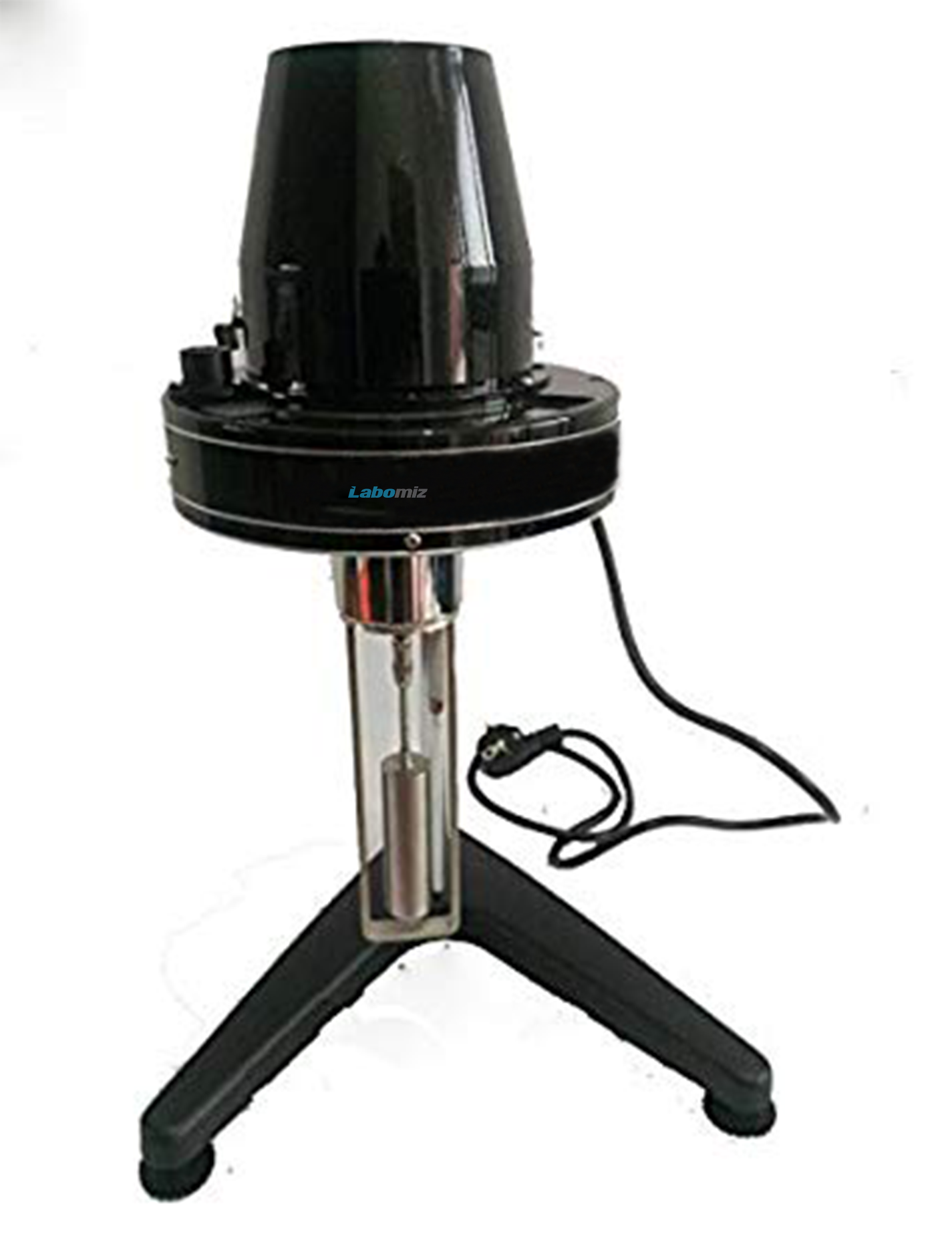

Dial reading viscometer MRV-1A is analog unit which measures the viscosity of different fluids. Oblique rack connected to base acts as a lifting system. Different rotors are available for varying measurement requirement. Analogue display shows torque ( % ) later manually converted to centipoise.
Request Quote
Measurement range
1 mPa.s ⁓ 1 × 105 mPa.s
Rotor speed
6 rpm, 12 rpm, 30 rpm, 60 rpm
Accuracy ( Newton liquid )
± 5 %
Display mode
Dial
Power supply
220 V / 110 V ± 10 %
50 Hz / 60 Hz ± 10 %
Standard rotors
4 types
Dimensions
400 × 370 × 150 mm
Bench-top unit
Electronic driven rotor
Analogue display
Maintain constant temperature
Rapid and reliable operation
Used to measure the absolute viscosity of Newton and apparent viscosity Non-newton fluids. Measures the viscosity of petroleum, resins, paints, inks, sizing agent, cosmetics, creams and pharmaceuticals fluids.
