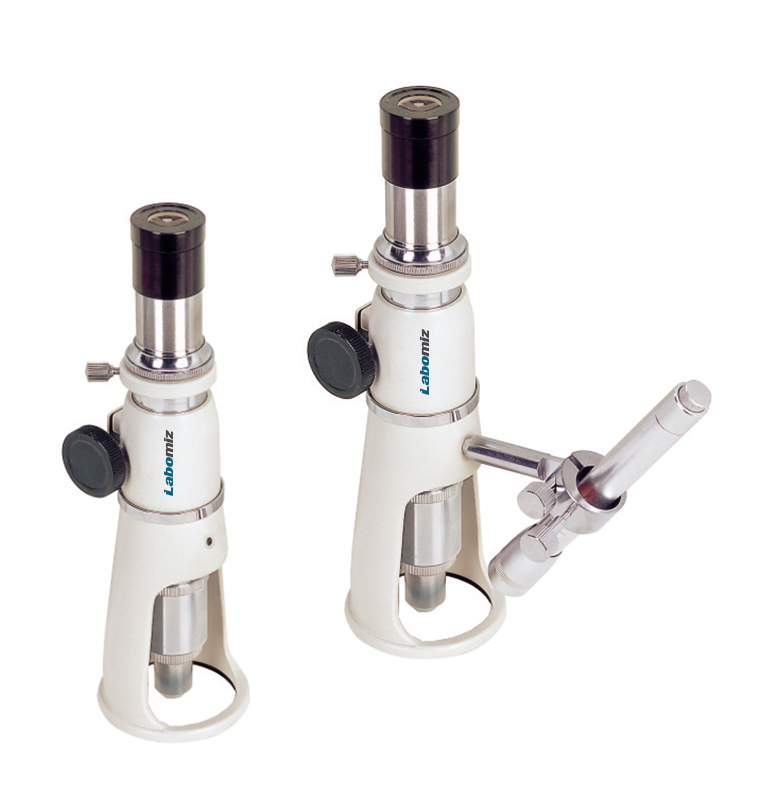

Portable measuring microscope MPET-1A is a smart size, light weight, and easy to operate unit. High quality optical components provide exceptional resolution. With holder and without holder illumination options available as per user requirement.
Request Quote
Total magnification
100X
Objective
10X
Illumination
Pen light, battery
Numerical aperture
0.25
Mechanical tube length
160 mm
Eyepiece
10X / 18 Cross with Reticle
Diameter of viewing field in eyepiece
Φ 18 mm
Eyepiece reticle
0.1 mm
Fine division
0.01 mm
Working distance
6.93 mm
Focus range
30 mm
Diameter of bearing plane
Φ 63 mm
Height of microscope
210 mm
Weight
650 g
Eyepiece 10X with reticle and diopter adjustment
10X / 18 Cross with Reticle
Fitted with high quality precision optics to give the best performance
Used for spot examination of machinery industry, paper making, printing and textile.
