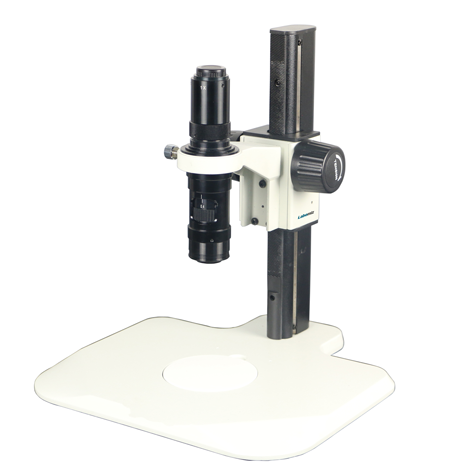

Monocular Zoom Microscope MMZM-2A is a precise optical system providing high resolution and sharp stereoscopic images. It is flexibly equipped with a microscopic stand. It ca be integrated in a semi-conductor and integrate circuit board production line. Adapts to C-mount, and works with various digital cameras.
Request Quote
Video eyepiece
1X
Objective
1X, WD: 117 mm
Zoom magnification
0.4X ~ 3.2X
Zoom ratio
1:8
Optical magnification
0.1 X ~ 12.8 X (With optional eyepiece and objectives)
Maximum adaptive sensor size
2 / 3 ″
Mounting diameter
45 mm
Camera connector
Standard C - mount
Stand
Coarse focus, Column height: 326 mm
Focusing Range: 160 mm
Base Dimension: 318 x 308 x 16 mm
High quality zoom optical system
Compact structure makes it occupy less working space
Various digital cameras can be used with the microscope for image capture and analysis
Used in educational demonstration, agriculture research, industrial material, semi-conductor and integrated circuit inspection areas.
