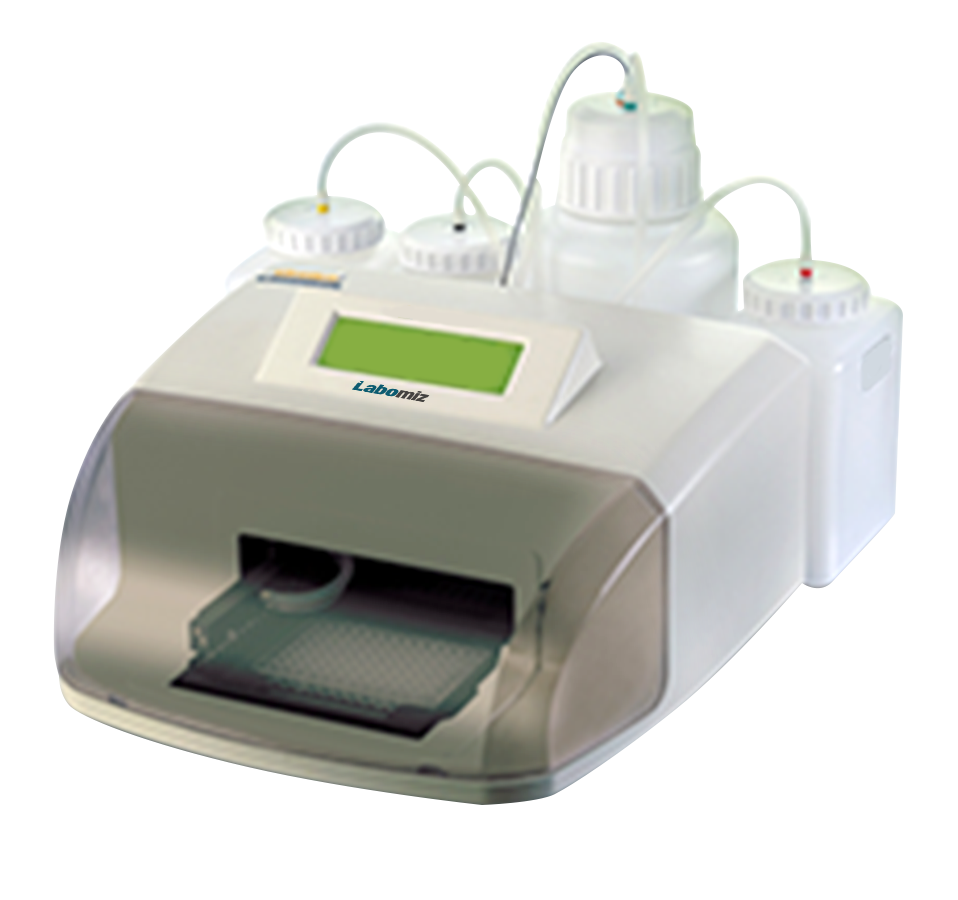

Microplate washer MMPW-1B is a benchtop unit with 12 and 8-way interchangeable wash heads. Automated self-diagnostic program aids in easy error rectification. Built-in touch LCD screen for easy parameter accessibility and viewing. Automatic liquid monitoring system improves intra and interplate reproducibility and minimises the number of failed experiments.
Request Quote
Plate type
8-way or 12-way
Type of wash heads
UV or flat-bottom
Wash rows
1 row ~ 12 rows
Wash mode
Row and plate
Wash programs
Upto 64
Wash cycles
1 ~ 9
Dispensing accuracy
< 5 % at 300 µL
Liquid flow rate
Programmable
Aspiration strength
Programmable
Residual volume per well
< 2 µL for U/V bottom plates
< 3µL for flat-bottom plates
Soak time
Up to 99 seconds
Display mode
Touch screen
Display
LCD
Humidity
20 % ~ 85 %
Temperature
10 °C ~ 30 °C
Number of plates
Up to 10
Dispense volume
50 µL to 700 µL
Bottle capacity
1 L × 2 L (Cleaning Solution A)
1 L × 2 L (Cleaning Solution B)
1 L × 2 L (Distilled Water)
1 L × 3.5 L (Waste)
Number of wash heads
1 × 8
1 × 12
Power supply
AC 200 V / 110 V ± 10 % ,50 Hz /60 Hz
Dimensions
380 × 350 ×190 mm
Weight
9.0 kg
Compatible with flat, U-or V-bottom plates
8-way and 12-way interchangeable wash heads
Programmable up to 64 wash protocols
Minimal residual volume
Low well-to-well variation
Automatic self-diagnostic program
Automatic liquid monitoring system
Dual cleaning solutions (A/B) (optional)
Used in laboratories to wash the experimental samples arranged in plate-based formats during ELISAs / EIAs, enzymatic activity
