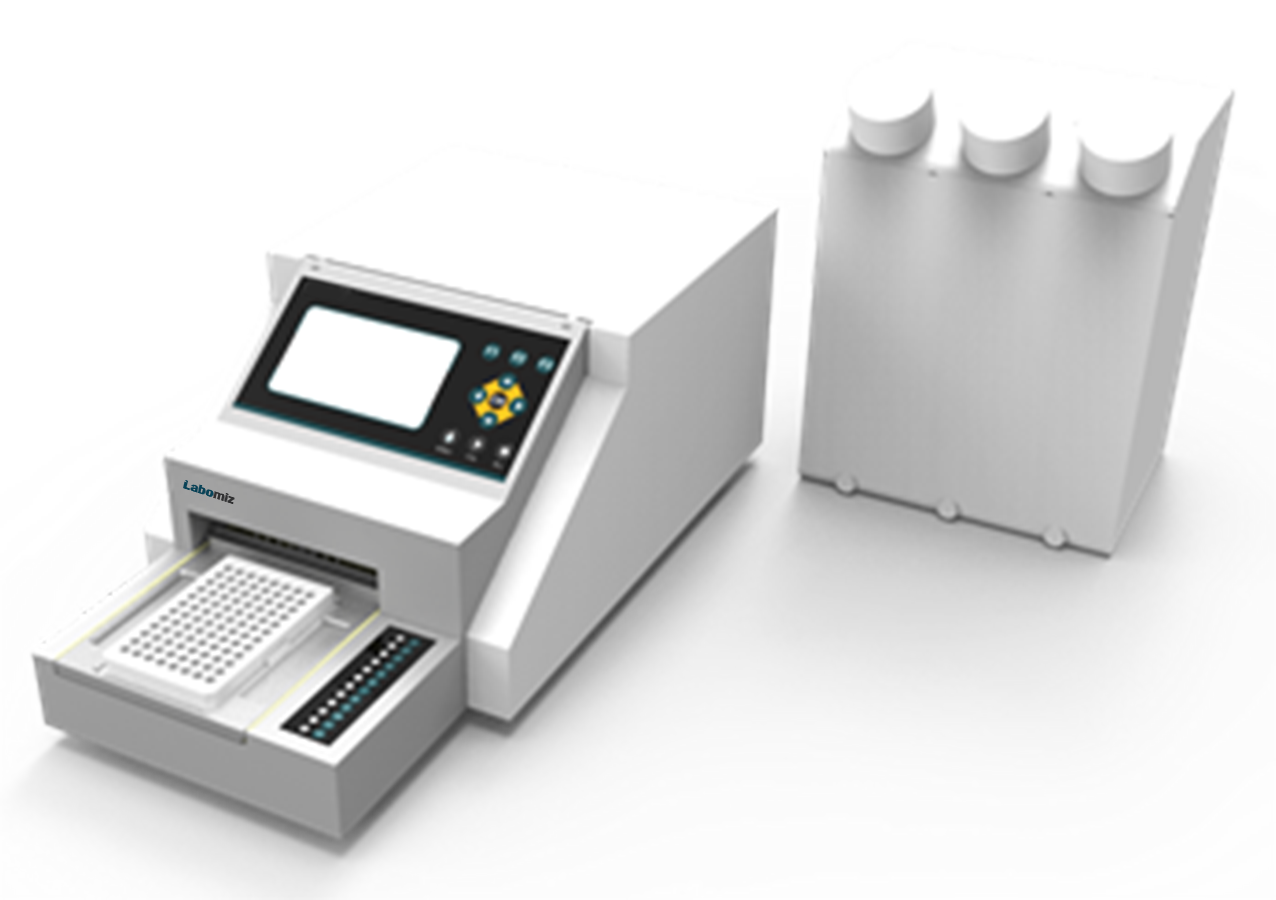

Microplate washer MMPW-1A is a semi-automatic washer module for immunoassay processing system. It is characterized with automatic wash buffer selection and liquid level sensor. The washer eradicates specified residual volume after aspiration. Provision of distilled water purges manifold and avoids clogging.
Request Quote
Residual volume per well
< 2 µL
Number of plates
96 well plates
Wash volume
50 µL ~ 1000 µL
Dispense volume
50 µL ~ 400 µL
Bottle capacity
2 × 4 L wash bottles
1 × 4 L waste bottles
Number of wash heads
1 × 8
1 × 12
Accuracy
< 5 %
Precision
< 3 %
Power supply
220 V; 50 Hz
Dimensions
541 × 280 × 212 mm
Weight
14 kg
High throughput system ensures reliable result delivery
Adaptable with ELISA processing
Full control over relevant parameters
Individual activation and deactivation of adjacent columns
Predefinition and assignment of processing methods
Parallel plate processing without unnecessary plate transfer
Used in the fields of genetics, immunology, microbiology, genetics, pathology, etc.
