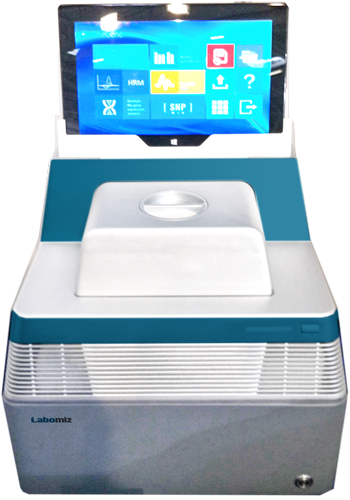

Real time PCR MLRTP-1A is a 96 well capacity PCR machine with, wide temperature range, and fast speed dual colour scanning mod. The adjustable automatic hot lid with auto opening/closing ensures constant pressure for various tube heights. It offers wide range of Block temperature. With its unique Block dissipation technology, it provides precise temperature control and thermal gradient which easily optimizes PCR assays.
Request Quote
Sample Capacity
12 × 8 (96 wells with 0.2 ml each) plate, 96 × 0.2 ml tubes (Bottom Transparent)
Emission Wavelength
500 to 800 nm
Excitation Wavelength
300 to 800 nm
Sample Volume Range
5 to 100μl
Program
Max 20 Segments for Each Program, Max 99 Cycles
Dynamics Range
10 to 1010 Copies
Max. channels number of fluorescence detection
5 channels
Detected Fluorescence
F1 : FAM, SYBR Green 1; F2 : VIC HEX TET JOE CY3 TAMRA; F3 : ROX TEXAS-RED; F4 : CY5 Quasar-670; F5 : CY5.5 Quasar-705
Block Temp. Range
4 to 105℃ (Minimum Increment: 0.1℃), SOAK Low Temp. Conservation Function
Temp. Control Accuracy
≤ ± 0.1 ℃
Temperature Fluctuation
≤ ± 0.1 ℃
Temperature Uniformity
≤ ± 0.3 ℃
Ramping Rate
4.0 ℃/sec
Temperature Control Mode
Block/Tube Simulation Mode (Automatic Control based On Sample Volume )
Gradient Temp. Range
1 to 36 ℃
Hot-lid Temp. Range
30 to 110℃ (Adjustable, default 105℃, Automatic Hot-lid )
Microsoft: Windows XP/Windows vista/Windows 7/Windows 8
Software: Excel2000/2002/2003/2007/2012
PC Configuration
Memory : 512 M; Hard Disk : 10 GB; CPU : Pentium® 4; Virtual Memory : ≥ 1000 MB
Power Supply
100 to 240 V, 50/60 Hz, 600 W
Dimension ( L × W × H )
410 × 386 × 352 mm
Socket
USB Adapter; Bluetooth Adapter
Tablet
Microsoft Surface 2 pro
Ferrotec Peltier cooler with improved efficiency rate and long life
Wide range of Block temperature (4-105°C) with SOAK low temp. function
5 individual filters cover wide range of fluoresence detection wavelength
Maximum 36°C temperature gradient control function with calculator
Automatic brake function of internal motor
Touch screen display with one finger touch operations
High long life LED
Dual high sensitivity PMT (photomultiplier tube) synchronous detection
Wide power supply range with PFC function
PC connections, USB, wireless Bluetooth data transfer
Real time PCR is used for sequencing, genotyping, cloning, mutagenesis and routine applications that require quantification and characterization of nucleic acids in academic institutes, research centres, diagnostics and laboratories.
