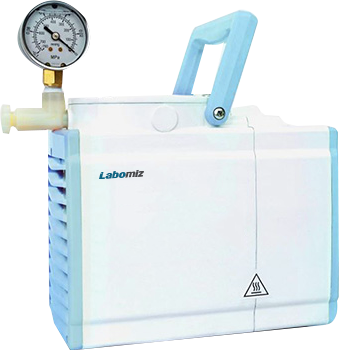

Diaphragm Vacuum Pump MLDVP-1B with nitrile (NBR) pump material is equipped with automatic cooling exhaust system to ensure continuous 24 hours operation & deliver contamination-free air, gases or vapours. Its high quality classical axle tree design enables steady running with low noise and high operating efficiency. It can operate independently or as part of a modular system and require minimal maintenance.
Request Quote
Pumping Speed
20 L/min
Ultimate Pressure
≥ 0.08 MPa
Vacuum
200 mbar
Material of diaphragm pump
Nitrile Rubber (NBR)
Power
160 W
Inlet
φ 6 mm
Outlet
Silencer
Temp. of Body
< 55 °C
Ambient Temp.
7 to 40°C
Pump Head
1
Noise Level
< 60 dB
Power Supply
220 V, 50 Hz
Dimension
215 × 120 × 235 mm
Weight
7.5 kg
Eco-friendly oil-free displacement pumping
Air exchange bin with filtering system for clean flow of air
Self-cooling air draft system
High quality classical axle tree design
Frictionless operating system
Nitrile rubber (NBR) diaphragm pump for organic solvents applications
User-friendly operations
Used for vacuum absorption, filtration and vacuum distillation, vacuum drying to extract, to transfer and to deliver contamination free air and gases across Life science , pharmacy, chemistry, food & packaging industry.
