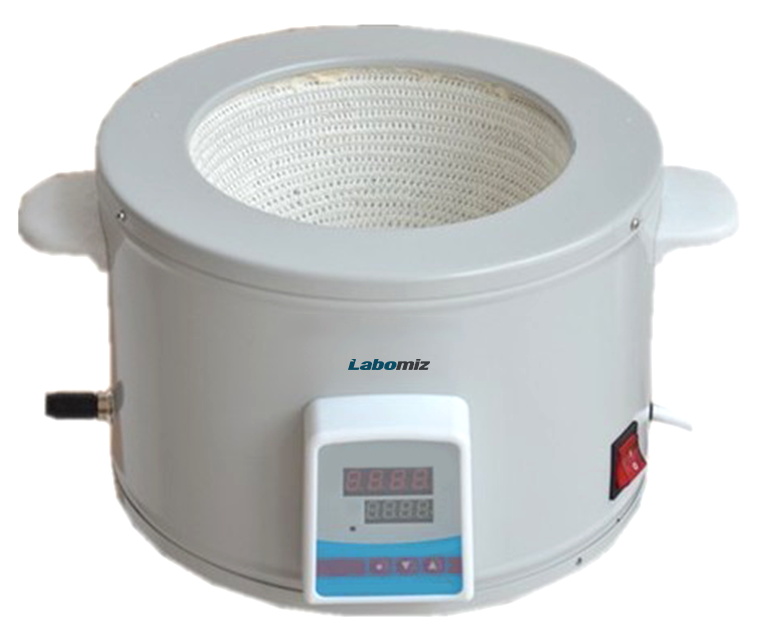

Intelligent Thermostatic Heating Mantle MITHM-1J is a table top unit with a capacity of 2 L. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.
Request Quote
Capacity
20 L
Power
5000W
Temperature
380 °C
Temperature accuracy
± 1 °C
Voltage
169 V ̴ 240 V, 110 V ̴ 120 V
Capacity of 20 L
Continuous working time
Alkali-free glass fiber
PID temperature control
Customized mantle availabe
Insulating course material of alumina silicate fiber
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
