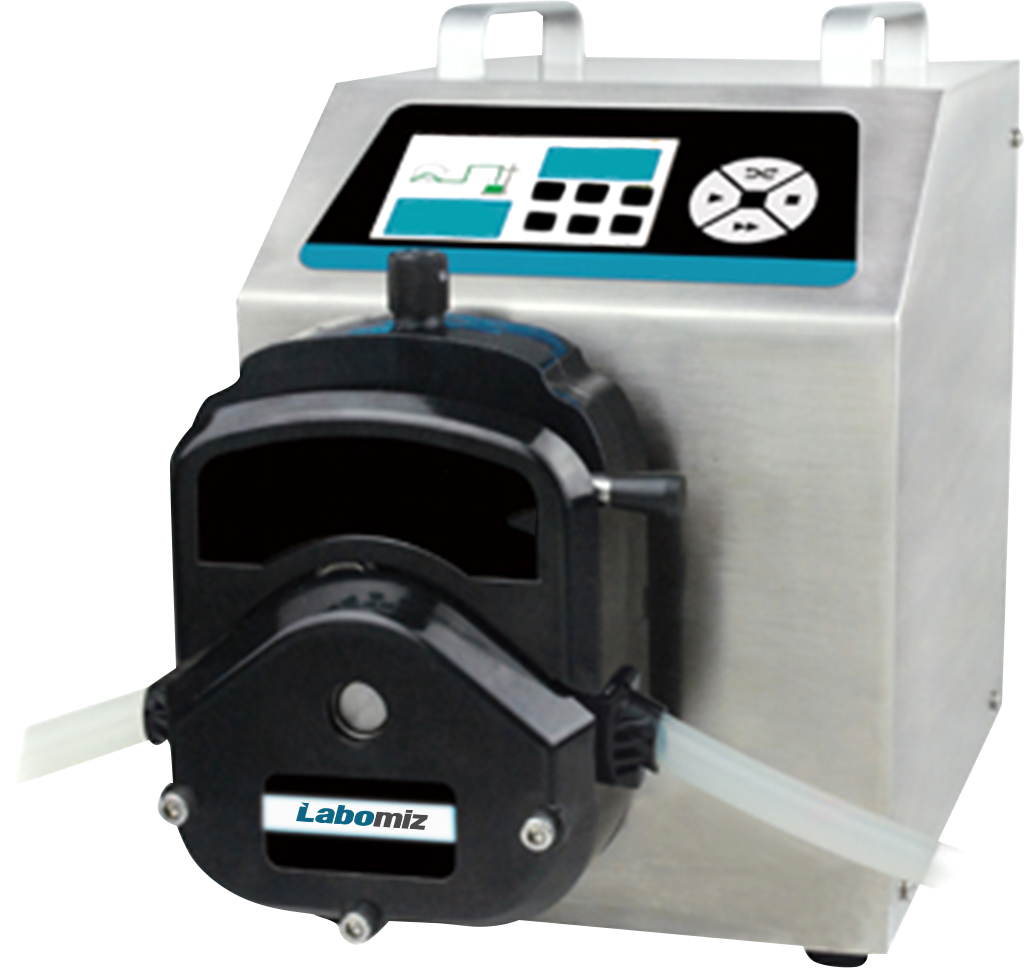

Intelligent Flow Peristaltic Pump MIFP-1F is a positive displacement pump with mechanical keypad for controlling direction and speed. Equipped with intelligent calibration it pumps out fluids with flow rates based on model type and tubing sizes. The number of channels and rollers ensures durability and performance. It is ideal for dispensing a fixed volume of liquid in a fixed amount of time.
Request Quote
Flow rate range
0.69 ml / min ~ 12000 ml / min
Number of channels
2
Speed range
0.1 rpm ~ 600 rpm
Speed resolution
0.01 rpm
Number of rollers
3
Flow rate resolution
0.01 mL
Flow rate accuracy
< ± 0.5 %
Back suction angle
0° ~ 360°
Outlet pressure
0.3 MPa
Standard Power supply
220 V ± 10 % 50 Hz
220 V ± 10 % 60 Hz
Optional Power supply
110 V ± 10 % 50 Hz 110 V ± 10 % 60 Hz
Power consumption
< 80 W
Temperature
0 °C ~ 40 °C
Relative humidity
< 80 %
Dimension ( L × W × H )
302 mm × 222 mm × 275 mm
Weight
13.14 kg
ABS plastic shell and UV coated structure for anti-corrosive and anti-static properties
Streamlined body design
4.3’’ LCD touch screen displays current motor speed, direction and working state
Embedded handle for comfortable grip and convenience
Built in touch pen
Flow rate data, settings and system configuration display all on same screen
Equipped with Pump head, internal wrench, external control protection cover
Mechanical keypad for controlling direction and speed
Equipped with Stepper motor drive
Dust and moisture proof, anti-static and anti-corrosive circuit board
Equipped with Servo motor drive
Used in waste water treatments, mining industry, chemical industry, laboratories, research institutes, food and beverage industry, etc.
