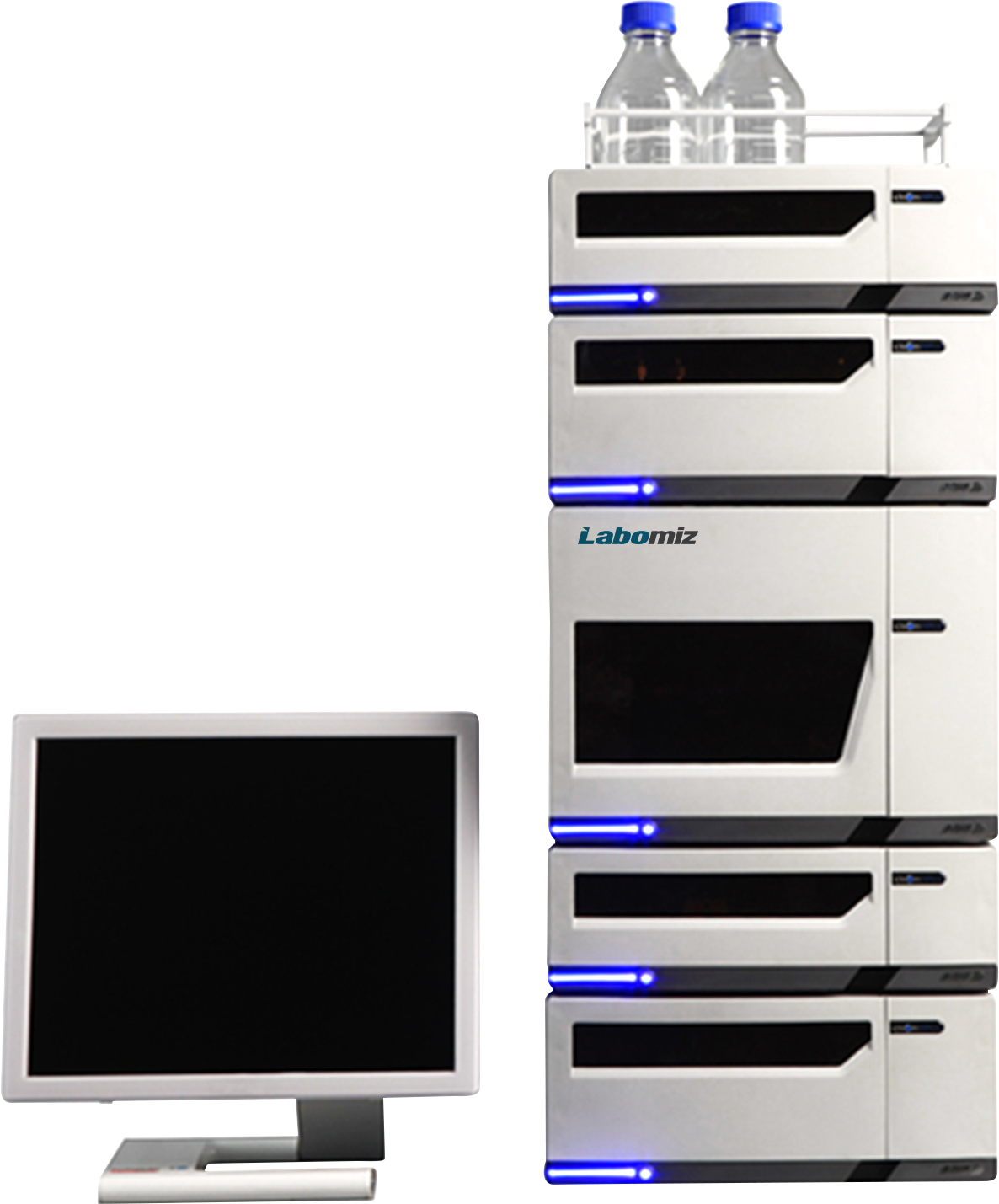

High performance liquid chromatography MHPLC-3B is a unit with flow rate range of 0.001 ̴ 10.000 mL / min, in 0.001 mL. It has a wavelength range of 190 nm to 800 nm. Gradient pump type unit that is equipped with specially designed column oven for GPC.
Request Quote
Pump specifications
Type
Gradient pump
Flow Rate Range
0.001 ̴ 10.000 ml / min, in 0.001 mL increments
Flow Accuracy
≤ ± 0.2 % (1.00 ml / min, H2O, R.T., 8.5 MPa)
Flow Precision
RSD ≤ 0.06 % (1.00 ml / min, H2O, R.T., 8.5 MPa)
Maximum Pressure
63 MPa
Pressure accuracy
≤ ± 3.0 %
Pressure pulsation
≤ 0.1 MPa
Composition rang
0 % ̴ 100 %
Composition precision
≤ 0.2 % RSD
Detector specifications
Wavelength range
190 nm ̴ 800 nm
Wavelength repeatability
≤ 0.1 nm
Wavelength accuracy
≤ ± 1.0 nm
Band width
6 nm
Response time
0.0 sec ̴ 5 sec
Baseline noise
≤ ± 0.25 × 10-5 AU (empty cell, 254 nm, 1.0 s)
Drift
≤0.5 × 10-4 A U / h (empty cell, 254 nm, 60 min)
Path length
10 mm (analytical cell)
Light source
Deuterium Lamp and Tungsten Lamp
Power supply
AC 110 V / 220 V ± 10 %, 50 Hz / 60 Hz
Remote controlled system
Automatic display
Sequence tables for any set of samples
Internal and external standard calculation methods
Integrated A/D converters
Prints, exports and starts other programs after the completion of a measurement
Used to split a mixture of compounds in the fields of analytical chemistry, biochemistry and industrial.
