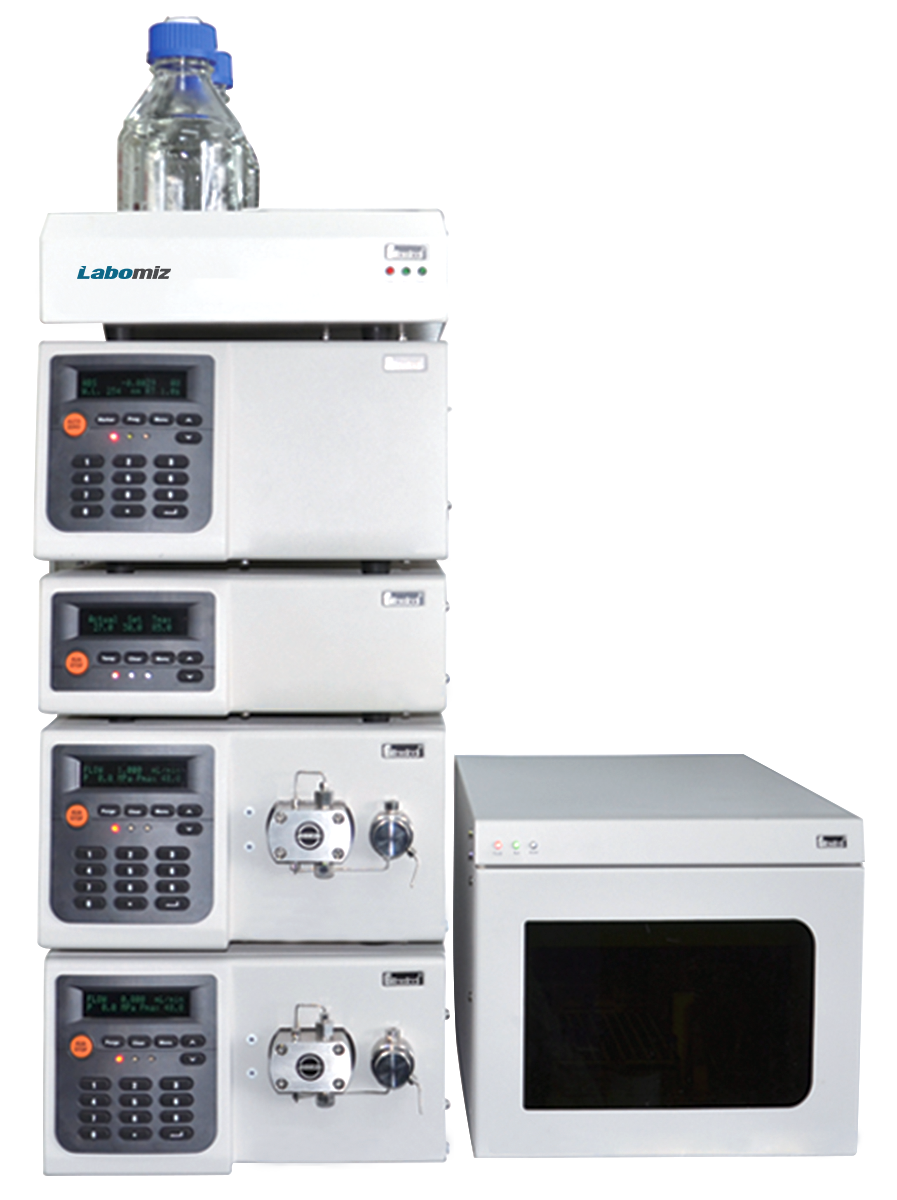

High performance liquid chromatography MHPLC-2C is a unit with flow range of 0.001 mL / min to 10.000 mL / min. It is equipped with classic short stroke and multi-stage flow correction which ensures pump performance. It has a UV detector of wavelength range 190 nm to 700 nm.It consists of a 4 chamber integrated vacuum degasser Built-in autosampler improvises unit automaticity, matching with a variety of HPLC system.
Request Quote
Pump specifications
Pump
Quaternary low pressure gradient pump(1 Set)
Flow rate range
0.001 mL / min ̴ 10.000 mL / min
Flow accuracy
≤ ± 0.2 % (1.00 ml / min, H2O, R.T., 8.5 MPa)
Flow precision
RSD ≤ 0.075 % (1.00 ml / min, H2O ,R.T., 8.5 MPa)
Maximum pressure
45 MPa
Pressure accuracy
≤ ± 3.0 %
Pressure pulsation
≤ 0.1 MPa
Detector specifications
Wavelength range
190 nm ̴ 700 nm
Wavelength repeatability
≤ 0.1 nm
Wavelength accuracy
≤ ± 1.0 nm
Band width
8 nm
Response time
0.0 sec ̴ 5 sec
Baseline noise
≤ ± 0.5 × 10 - 5 AU
Drift
≤ 1.0 × 10-4 AU / h
Path length
10 mm (analytical cell)
Light source
Deuterium Lamp
Power supply
AC 110 V / 220 V ± 10 %, 50 Hz / 60 Hz
Concave surface holographic grating
Self-developed PID control measure
4 chamber integrated vacuum degasser
Sequence tables for any set of samples
Internal and external standard calculation methods
All-round upgraded workstation
Prints, exports and starts other programs after the completion of a measurement
Used to split a mixture of compounds in the fields of analytical chemistry, biochemistry and industrial.
