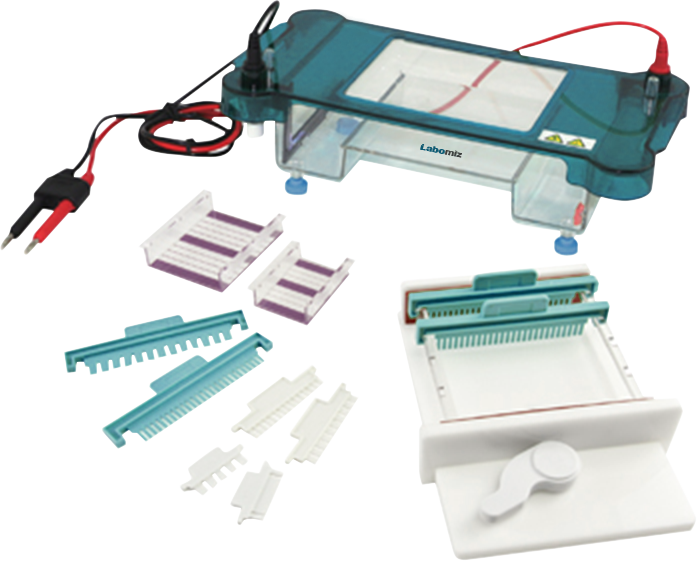

Horizontal Electrophoresis Unit MHEU-2E is a high resolution horizontal system with leak proof assembly for electrophoretic procedures. Large volume buffer ensures cooling effects and stable pH value for running gel at high voltage. Integrated transparent safety lid avoids electricity leakage and sample volatilizing in the cell. Inclusive long life platinum electrodes and high transparent material for gel molding.
Request Quote
Gel trays (W x L)
130 x 130 mm, 78 x 100 mm, 48 x 75 mm
Buffer volume
600 mL
Rows of combs
1 ~ 4
Comb thickness
1 mm, 1.5 mm
No of samples
3 to 104
Gel tray
6 mm
Gel making mode
Gel casting
External dimensions(L x W x H )
305 x 152 x 80 mm
Gross weight
1.7 kg
Dismountable electrodes (easy maintenance)
Fluorescent ruler on tray for sample observation
Automatic power off when lid is removed
Lugs for easy lid removal and transportation
High quality gel casting apparatus prevents gel leakage
Used in molecular biology, forensic science, research and diagnostic lab, microbiology, biochemistry to separate DNA, RNA and proteins for DNA fingerprinting, drug testing, protein analysis, genetic testing, PCR amplification, sample quantification, etc.
