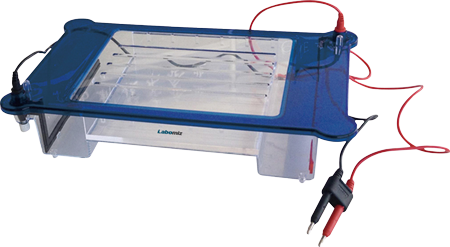

Horizontal Electrophoresis Unit MHEU-1C is a submarine unit with leak-proof buffer chamber assembly. Large volume buffer ensures cooling effects and stable pH value during experimental process. Integrated transparent safety lid prevents liquid volatilization and electricity leakage.
Request Quote
Gel trays (W x L)
200 x 200 mm, 200 x 150 mm, 200 x 100 mm
Buffer volume
1800 ml
Comb thickness
1 mm and 1.8 mm
Comb throughput
17, 22, 36, 44 samples
No of samples
17 to 264 samples
External dimensions(L x W x H )
397 x 230 x 83 mm
Package dimensions (L x W x H )
530 x 390 x 220 mm
Gross weight
5 kg
Dismountable electrodes (easy maintenance)
PC (Polycarbonate) transparent top lid for safety
Automatic power off if lid is removed
Bias power supply (BPS-1/BPS-2/) for controlling circuit
Used in healthcare, forensic, research and clinical lab, microbiology, biochemistry for DNA fingerprinting, drug testing, protein analysis, genetic testing, etc.
Body tank electrode x 1,Gel tray 200 x 200 mm x 1, Gel tray 200 x 150 mm x 1,Gel tray 200 x 100 mm x 1,Gel castor x 1,1 mm thickness 17 wells combs x 2
2
1.8 mm thickness 17 wells comb x 2 ,1mm thickness 22 wells comb x 2
3
1.8 mm thickness 22 wells comb x 2 ,1 mm thickness 36 wells comb x 4
4
1.8 mm thickness 36 wells comb x 2, 1 mm thickness 44 wells comb x 2
5
1.8 mm thickness 44 wells comb x 2, Leveling feet x 4
