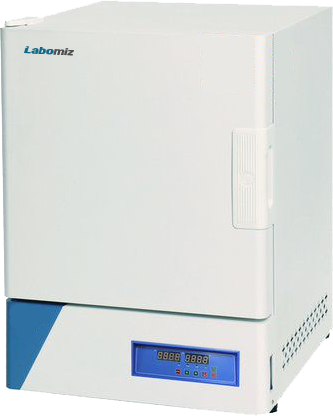

Gravity Convection Incubator MGCI-1A is equipped with air jacket system for uniform temperature distribution, excellent heat insulation and gentle air flow in chamber. Microprocessor PID auto-tuning controller installed at the bottom of the chamber controls temperature, speed and flow. Safety devices include ELB ( elastic load balancing ), self-diagnosis functions such as memory error, overheating, SSR and sensor short circuit for end user safety.
Request Quote
Capacity
91 L
Chamber
1
Shelves
3
Environmental temperature range
5 °C ~ 25 °C
Ambient temperature range
5 °C ~ 70 °C
Temperature accuracy
± 0.5 °C at 37 °C
Thermocouple
Pt 100 Ω
Heater power
200 W
Power ( 1 phase )
AC 230 V 50 Hz /60 Hz
Chamber dimensions ( W × D × H )
450 × 450 × 450 mm
Exterior dimensions ( W × D × H )
580 × 600 × 820 mm
Net weight
47 kg
Overheating prevention by auto shut off circuit
Solid-state relay (SSR) type temperature regulator (an electronic switching device)
Digital display for parameters view and control
Clear safety inner glass door (observation window)
Stainless steel shelves (interior material)
Steel plate with powder coated finish (exterior material)
Used for general laboratory applications like bacterial research, microbiology, pharmaceutical, gene cloning, food and beverage testing.
