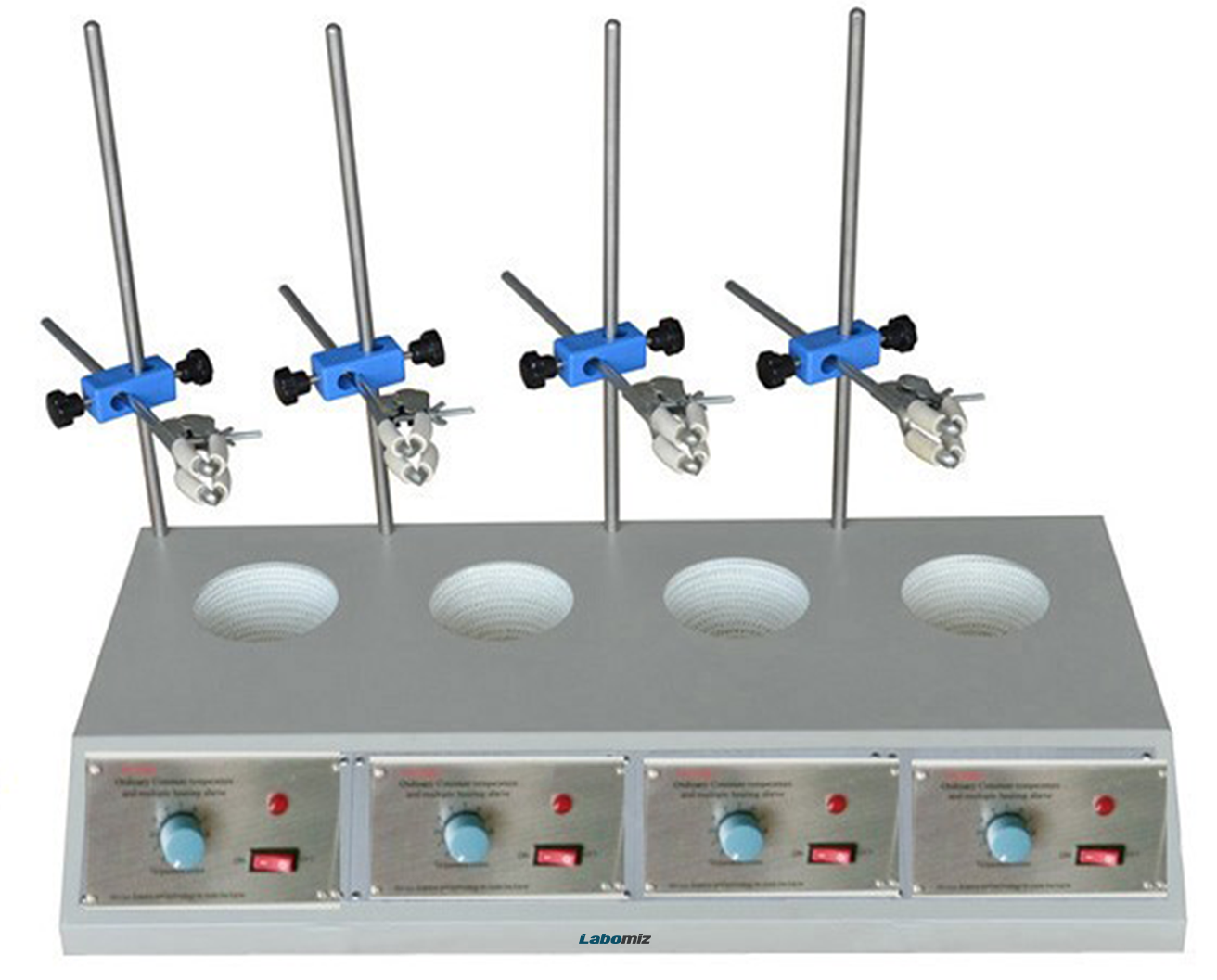

Analog 4-Position heating mantle MFPM-1A

Analog 4-Position heating mantle MFPM-1A is a table top unit with a capacity of 50 mL. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C.

Capacity	50 ml
Power	110 W
Temperature	380 °C
Temperature accuracy	± 5 °C
Position	4
Voltage	160 V ̴ 240 V, 110 V ̴ 120 V

Capacity of 50 mL
Continuous working time
Alkali-free glass fiber
PID temperature control
Insulating course material of alumina silicate fiber

Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields

Generate Catalog For : MFPM-1A

Accessory No.	Accessory	Quantity
A1	Removable holder	1
A2	Clamp with screw	1
A3	Inner Thermocouple (4 - spin)	1
A4	Outer Thermocouple (4 - spin)	1
	· Stainless Steel Length: 235mm
	· Wire length : 1000mm
A5	Magnetic bead	1
	· Designed specifically for round bottom flasks
	· PTFE - coated
	· Length: 20mm
	· Diameter : 10 mm
