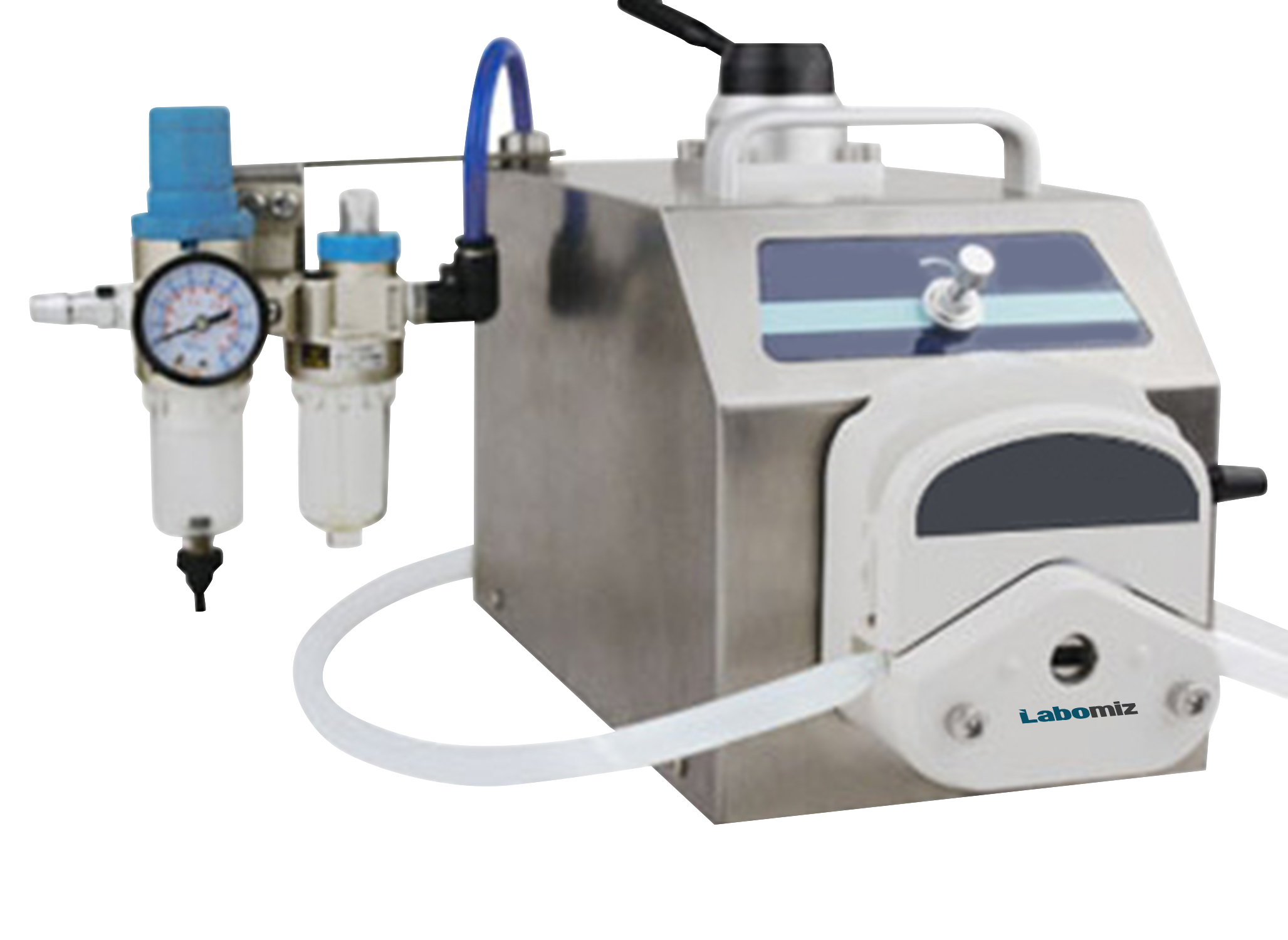

Air Driven Peristaltic Pump MEPP-1A is a positive displacement pump with a pneumatic motor and a barometer to check pressure. The unit pumps out fluids by expanding compressed air. It provides a stable flow rate, high torque and low noise. The number of channels and rollers ensures durability and performance.
Request Quote
Flow rate range
0.0402 mL/min ~ 2280 mL/min
Speed range
60 rpm ~ 600 rpm
Number of channels
1
Number of rollers
3
Gas consumption
4 L/sec
Pressure
0.1 MPa ~ 0.4 MPa
Power consumption
< 80 W
Temperature
0 °C ~ 40 °C
Relative humidity
< 80 %
Dimension ( L × W × H )
266 mm × 272 mm × 230 mm
Weight
4.10 kg
Stainless steel construction
Adjustable speed
Stable flow rate
High torque, low noise
Equipped with Pneumatic motor drive
Barometer to check pressure
Used in pharmaceuticals, flammable industrial sites, waste water treatments, cosmetic industry, chemical industry, laboratories, research institutes, food and beverage industry, etc.
