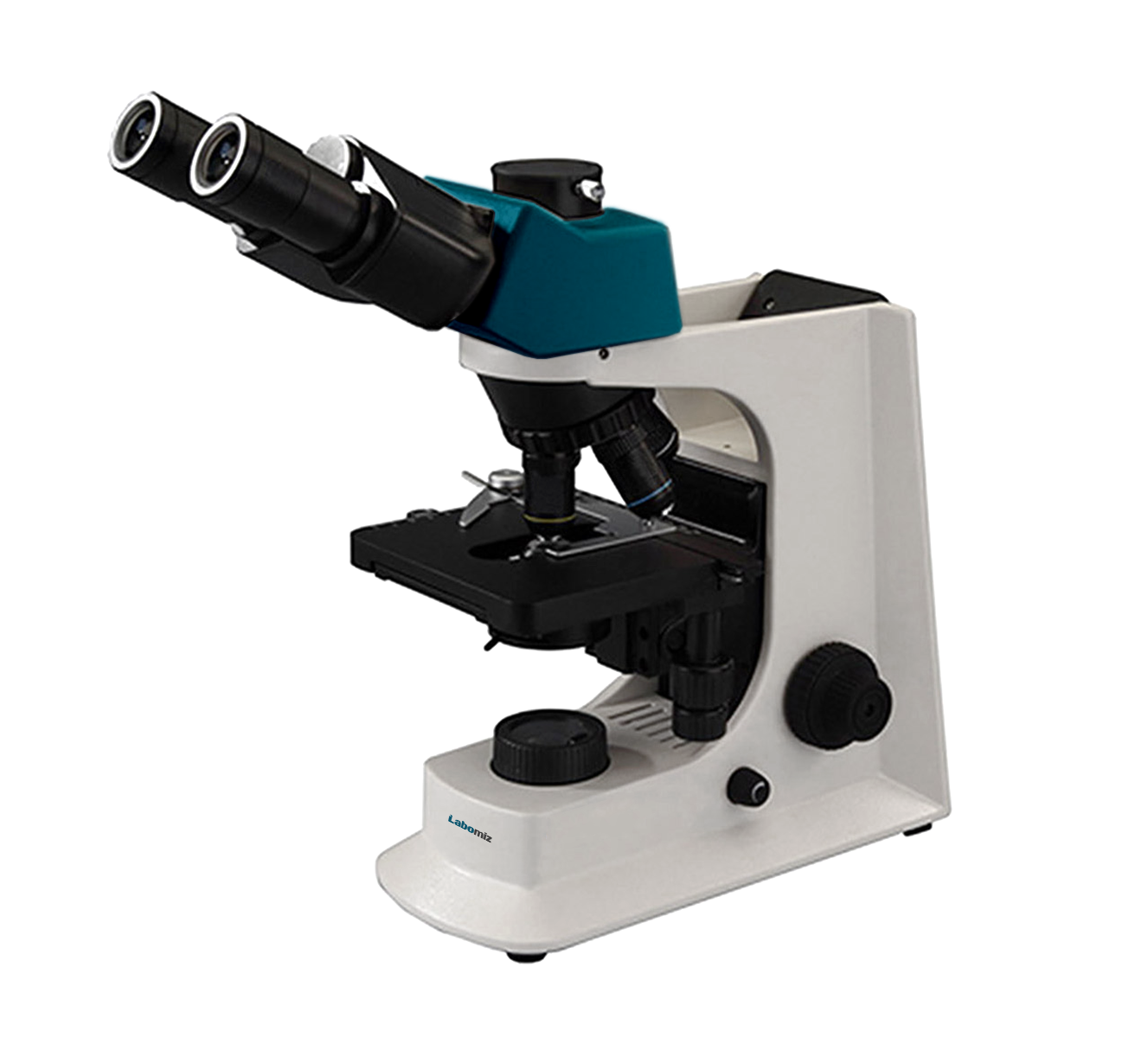

Biological Microscope MBIM-6B is an instrument with high quality optical system for superior specimen analysis. Aspheric system provides bright and convenient illumination for examination. LED illumination system enables specimen viewing with their natural colors. Various optional accessories upgrades unit and makes it more flexible for advanced application.
Request Quote
Optical system
Finite optical system
Viewing head
Seidentopf Binocular
Viewing head inclination
Inclined at 30°, 360° rotatable
Interpupillary distance
48 mm ~ 75 mm
Eyepiece
WF10X/18 mm
Objective
Plan achromatic objective 4X, 10X, 40X/0.65 (S), 100X/1.25 (Oil) (S)
Nosepiece
Backward Quadruple
Stage
Double layer mechanical stageSize: 145 mm x 140 mm ;
Cross Travel: 76 x 52 mmScale 0.1 mm ; Two slide holder
Focusing
Coaxial coarse and fine focusing knobsTravel range:26 mm ; Scale:2 µm
Condenser
Abbe condenser NA1.25 with Iris diaphragm
Illumination
3W LED Illumination Systems, brightness adjustable
Dimension
420 x 280 x 450 mm
Weight
6.5 kg
Aspheric system reduces spherical aberration
Back handle and observing hole for convenient operation
Coaxial coarse and fine focusing adjusting knobs
Backward nosepiece for quick access to slides
Finite optical system
Used in academic institutes, research, physiology, biology, pathology, bacteriology, medical laboratories, industrial laboratories for sample analysis, to observe cell, tissues and other specimens.
