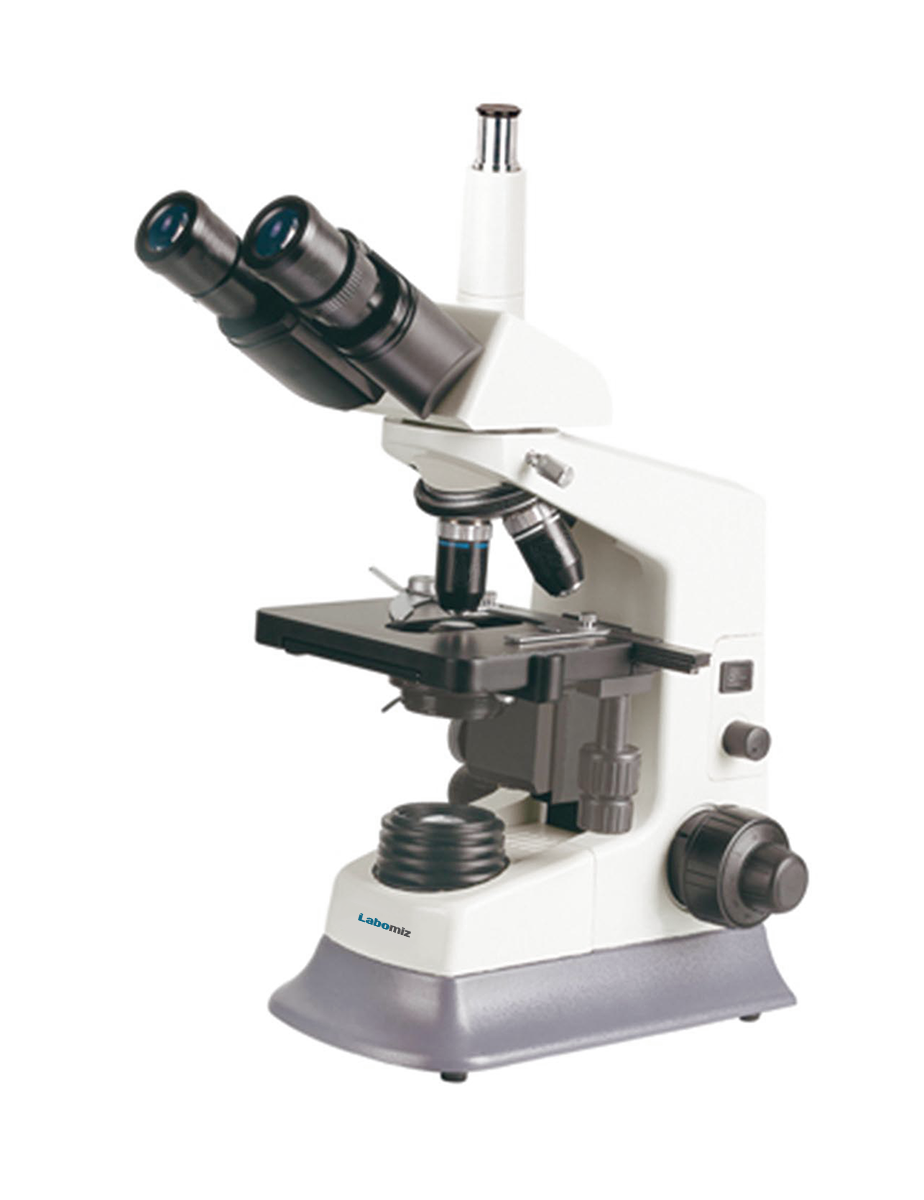

Biological microscope MBIM-5E is an instrument with advanced alignment function for sharp specimen image. Optical head with inclination and 360° swivel function reduces fatigue while viewing. LED illumination system enables specimen viewing with their natural colors. Various optional accessories upgrades unit and makes it more flexible for advanced application.
Request Quote
Viewing head
Seidentopf Trinocular
Viewing head inclination
Inclined at 30°, 360° rotatable
Interpupillary distance
55 mm ~ 75 mm
Eyepiece
EW10X/ 20 mm
Objective
Semi-plan achromatic objective 4X, 10X, 40X, 100X
Nosepiece
Backward Quadruple
Stage
Double layer mechanical stage 140 mm x 140 mm/ 75 mm x 50 mm
Focusing
Coaxial coarse and fine adjustmentFine division 0.002 mmCoarse stroke 37.7 mm/rotationFine stroke 0.2 mm/rotationMoving range: 20 mm
Condenser
NA 1.25 abbe condenser with iris diaphragm and filter
Illumination
1W S-LED Illumination, brightness adjustable
Filter
Blue, Green filter
Dimension
350 x 310 x 570 mm
Weight
9.5 kg
Large viewing area with wide field eyepiece
High contrast semi-plan achromatic objective
Backward nosepiece for greater access to slides
Blue and green filter for photo-microscopy
Wide input voltage range (100 V~ 240 V)
Used in clinics, hospitals, schools, education institutes, agriculture, histology, pathology, research to observe cell, tissues and other specimens.
